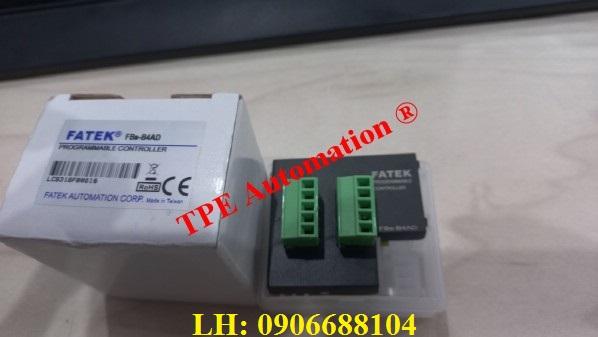

Card PLC Fatek FBs-B4AD

Total Channels : 4 Channels
Resolution : 12 bits
Coding Format : 14 bits ( 0 ～ 16380 )
Signal Resolution : 2.44mV(Voltage), 4.88uA(Current)
Registers Occupied : 4 Registers ( D4072 ～ D4075 )
Conversion Time : Updated each scan
Accuracy : ±1 %
Max. Absolute Input Rating :
±15V(Voltage), 30mA(Current)
Input Impedance : 100KΩ(Voltage), 125Ω(Current)
Measurement Range : 0 ～ 10V(Voltage)
0 ～ 20mA(Current)
Indicator(s) : No
Internal Power Consumption : 5V, 100mA (Max. Load)
Operating Temperature : 0 ～ 60 ℃
Storage Temperature : -20 ～ 80 ℃
