FBS-CB2: 1 cổng RS232
FBS-CB5: 1 cổng RS485
FBS-CB22: 2 cổng RS232
FBS-CB55: 2 cổng RS485
FBS-CM25: 1 cổng RS232 và 1 cổng RS485
FBS-CM55: 2 cổng RS485 loại gắn rời
FBS-CM25E: 1 cổng RS232. 1 cổng RS485 và 1 cổng ethernet loại gắn rời
FBS-CM55E: 2 cổng RS485 và 1 cổng ethernet loại gắn rời
===========
CUNG CẤP VÀ HỔ TRỢ DỊCH VỤ KỸ THUẬT LẮP ĐẶT , SỬA CHỮA, LẬP TRÌNH
LH hổ trợ nhanh : 090 66 88 104
D/C: 23-25 Tân Chánh Hiệp 8, Q.12, TP.HCM
| FBs-10MA◇Δ–◎ | 6 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 points relay or transistor output (2 points high speed 100KHz, 2 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; I/O is not expandable |
| FBs-14MA◇Δ–◎ | 8 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 4 points medium speed total 5KHz); 6 points relay or transistor output (2 points high speed 100KHz, 4 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; I/O is not expandable |

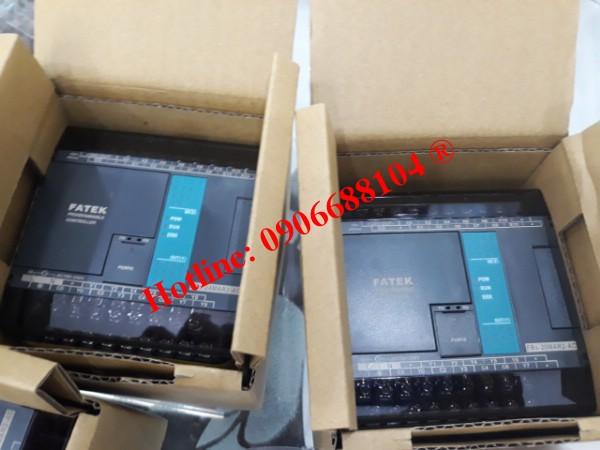

| FBs-20MA◇Δ–◎ | 12 points 24VDC digital input (2 points high speed 100KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 points relay or transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; (MB is detachable terminal block) |

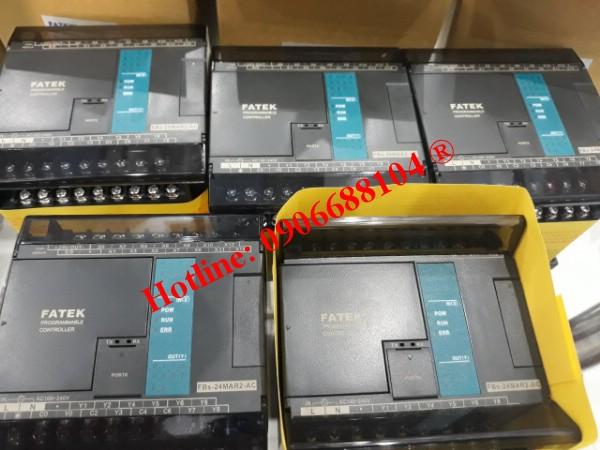

| FBs-24MA◇Δ–◎ | 14 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 points relay or transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; (MB is detachable terminal block) |
| FBs-32MA◇Δ–◎ FBs-32MB◇Δ–◎ |
20 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 points relay or transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; (MB is detachable terminal block) |

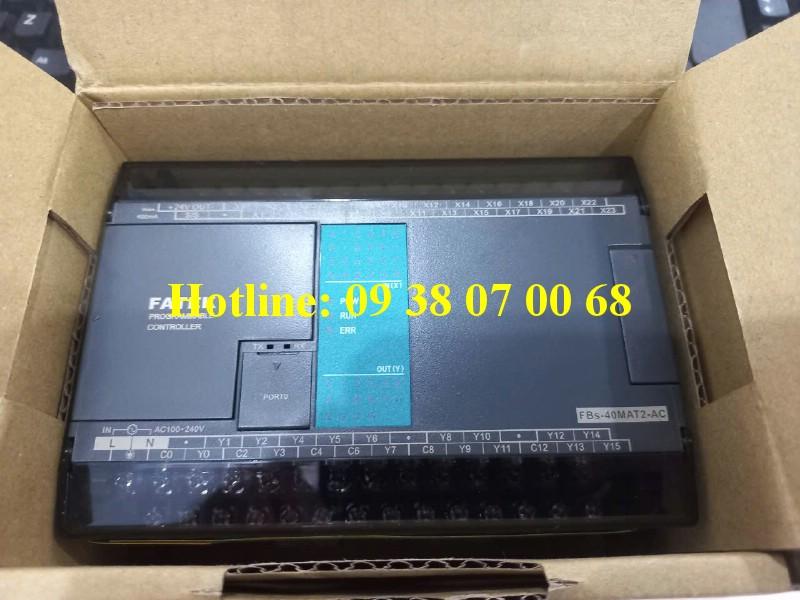

| FBs-40MA◇Δ–◎ FBs-40MB◇Δ–◎ |
24 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 16 points relay or transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; (MB is detachable terminal block) |
| FBs-60MA◇Δ–◎ FBs-60MB◇Δ–◎ |
36 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 24 points relay or transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); built-in RTC; (MB is detachable terminal block) |
| Advanced Main Units | |
| FBs-10MC◇Δ–◎ | 6 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 points relay or transistor output (2 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; I/O is not expandable |
| FBs-14MC◇Δ–◎ | 8 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 4 points medium speed total 5KHz); 6 points relay or transistor output (2 points high speed 200KHz, 4 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; I/O is not expandable |
| FBs-20MC◇Δ–◎ | 12 points 24VDC digital input (4 points high speed 200KHz, 2 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 points relay or transistor output (4 points high speed 200KHz, 4 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-24MC◇Δ–◎ | 14 points 24VDC digital input (4 points high speed 200KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 points relay or transistor output (4 points high speed 200KHz, 4 points medium sped 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-32MC◇Δ–◎ | 20 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 points relay or transistor output (6 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-40MC◇Δ–◎ | 24 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 16 points relay or transistor output (6 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-60MC◇Δ–◎ | 36 points 24VDC digital input (8 points high speed 200KHz, 8 points medium speed total 5KHz); 24 points relay or transistor output (8 points high speed 200KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| NC Positioning Main Units | |
| FBs-20MN◇Δ–◎ | 2 sets (1 axis) 920KHz 5VDC digital differential input, 10 points 24VDC digital input (4 points high speed 200KHz, 6 points medium speed total 5KHz); 2 sets (1 axis) 920KHz 5VDC digital differential output, 6 points relay or transistor output (average high speed 200KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-32MN◇Δ–◎ | 4 sets (2 axes) 920KHz 5VDC digital differential input, 16 points 24VDC digital input (4 points high speed 200KHz, 8 points medium speed total 5KHz); 4 sets (2 axes) 920KHz 5VDC digital differential output, 8 points relay or transistor output (4 points high speed 200KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| FBs-44MN◇Δ–◎ | 8 sets (4 axes) 920KHz 5VDC digital differential input, 20 points 24VDC digital input (8 points medium speed total 5KHz); 8 sets (4 axes) 920KHz 5VDC digital differential output, 8 points relay or low speed transistor output; 1 RS232 or USB port (expandable up to 5); built-in RTC; detachable terminal block |
| Expansion Power Supply | |
| FBs-EPW-AC/D24 | Power supply of 100~240VAC or 24VDC input for expansion module; 3 sets output power with 5VDC, 24VDC, and 24VDC, 14W capacity |
| DIO Expansion Units | |
| FBs-24XY◇–◎ | 14 points 24VDC digital input, 10 points relay or transistor output, built-in power supply |
| FBs-40XY◇–◎ | 24 points 24VDC digital input, 16 points relay or transistor output, built-in power supply |
| FBs-60XY◇–◎ | 36 points 24VDC digital input, 24 points relay or transistor output, built-in power supply |
| DIO Expansion Modules | |
| FBs-4Y◇ | 4 points relay or transistor output |
| FBs-8X | 8 points 24 VDC digital input |
| FBs-8Y◇ | 8 points relay or transistor output |
| FBs-8XY◇ | 4 points 24VDC digital input, 4 points relay or transistor output |
| FBs-16Y◇ | 16 points relay or transistor output |
| FBs-16XY◇ | 8 points 24VDC digital input, 8 points relay or transistor output |
| FBs-20X | 20 points 24VDC digital input |
| FBs-24X | 24 points high-density 24VDC digital input, 30 pins header with latch |
| FBs-24YT/J | 24 points high-density transistor SINK(T) or SOURCE(J) output (0.1A max.), 30 pins header with latch |
| Thumbwheel Switch Module | |
| FBs-32DGI | 8 sets 4 digits (total 32 digits) thumbwheel switch (or 128 points independent switch) multiplex input module, 30 pins header connector |
| 16/7 Segment LED Display Modules | |
| FBs-7SG1 | 1 set 8 digits 7-segment/4 digits 16-segment LED display (or 64 points independent LED) output display module, 16 pins header connector |
| FBs-7SG2 | 2 sets 8 digits 7-segment/4 digits 16-segment LED display (or 128 points independent LED) output display module, 16 pins header connector |
| AIO Modules | |

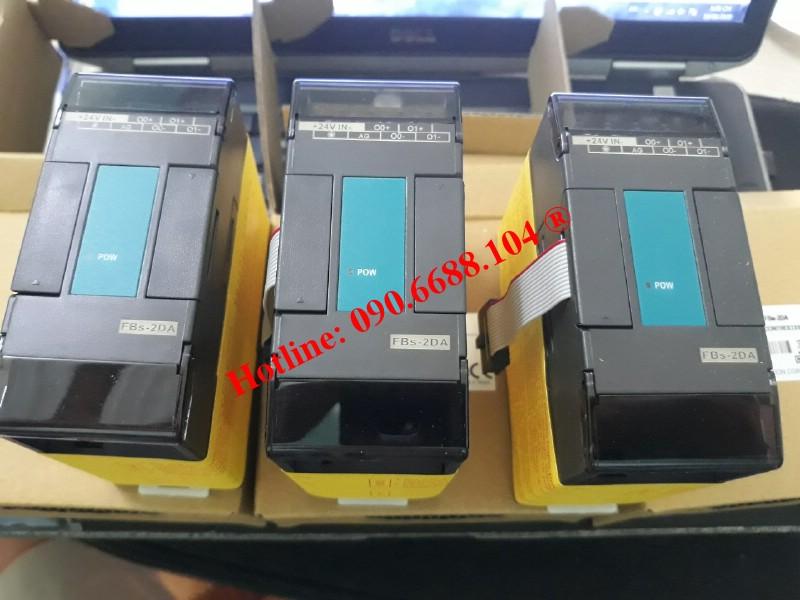

| FBs-2DA | 2 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
| FBs-4DA | 4 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
| FBs-4A2D | 4 channels, 14-bit analog input (same specification as 6AD)+2 channels, 14-bit analog output (same specification as 2DA) combo module |
| FBs-6AD | 6 channels, 14-bit analog input module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
| Temperature Measurement Modules | |
| FBs-2TC | 2 channels, thermocouple temperature input module with 0.1°C resolution |
| FBs-6TC | 6 channels, thermocouple temperature input module with 0.1°C resolution |
| FBs-16TC | 16 channels, thermocouple temperature input module with 0.1°C resolution. |
| FBs-6RTD | 6 channels, RTD temperature input module with 0.1°C resolution |
| FBs-16RTD | 16 channels, RTD temperature input module with 0.1°C resolution. |
| FBs-6NTC | 6 channels, NTC temperature input module with 0.1°C resolution |
| Voice Modules | |
| FBs-VOM | Built-in 1MB memory (play continuously up to 2 minutes), extendable 4GB SD card(play continuously up to 8,000 minutes) voice module, 245 messages, output 2W |
| Potential Meter Module | |
| FBs-4PT | 4 channels, 14-bit potential meter input module (Impedance range: 1~10K Ω) |
| Synchronous Serial Interface Module | |
| FBs-3SSI | 3 channels, Synchronous Serial Interface Module |
| AI + Temperature Measurement Combo Modules | |
| FBs-2A4TC | 2 channels, 14-bit analog input (same specifications as 6AD)+ 4 channels thermocouple temperature input (same specifications as 6TC) combo module |
| FBs-2A4RTD | 2 channels, 14-bit analog input (same specifications as 6AD) + 4 channels RTD temperature input (same specifications as 6RTD) combo module |
| Load Cell Module | |
| FBs-1LC | 1 channel, load cell measurement module with 16-bit resolution (including sign bit) |
| FBs-2LC | 2 channels, load cell measurement module with 16-bit resolution (including sign bit) |
| FBs-2LCH | 2 channels, high speed load cell measurement module with 120Hz, 16-bit resolution (including sign bit) |
| FBs-2LCHR | 2 channels, high speed load cell measurement module with 5Hz, 18-bit resolution (including sign bit) |
| Angular Resolver Decoder Module | |
| FBs-RZR | Angular Resolver Decoder Module |
| Communication Modules | |
| FBs-B2C | Bluetooth to RS232 wireless data communication converter |
| FBs-W2C | Wi-Fi to RS232 wireless data communication converter |
| FBs-CM22 | 2 ports RS232 (Port3 +Port 4) communication module |
| FBs-CM55 | 2 ports RS485 (Port3 +Port 4) communication module |
| FBs-CM25 | 1 port RS232 (Port3) + 1 port RS485 (port 4) communication module |
| FBs-CM25E | 1 port RS232 (Port3) + 1 port RS485 (port 4) + Ethernet network interface communication module |
| FBs-CM55E | 1 port RS485 (Port3) + 1 port RS485 (port 4) + Ethernet network interface communication module |
| FBs-CMECAT | EtherCAT master communication module |
| FBs-CMZBR | ZigBee communication repeater |
| FBs-CMGSM | GSM wireless communication module(2G) |
| FBs-CM25C | General purpose RS232 to RS485/RS422 communication interface converter with optical isolation |
| FBs-CM5R | General purpose RS485 repeater with optical isolation |
| FBs-CM5H | General purpose 4 ports RS485 HUB with photocouple isolation, RS485 connect as star cnnection |
| FBs-CMEH | Multi-function Ethernet-to-485 communication module |
| FBs-CM5EH | Multi-function Ethernet-to-485 communication module |
| FBs-CMWLC | Wireless communication module |
| FBs-CM55I | Isolated RS485 communication module |
| Communication Boards | |
| FBs-CB2 | 1 port RS232 (Port 2) communication board |
| FBs-CB22 | 2 ports RS232 (Port 1+ Port 2) communication board |

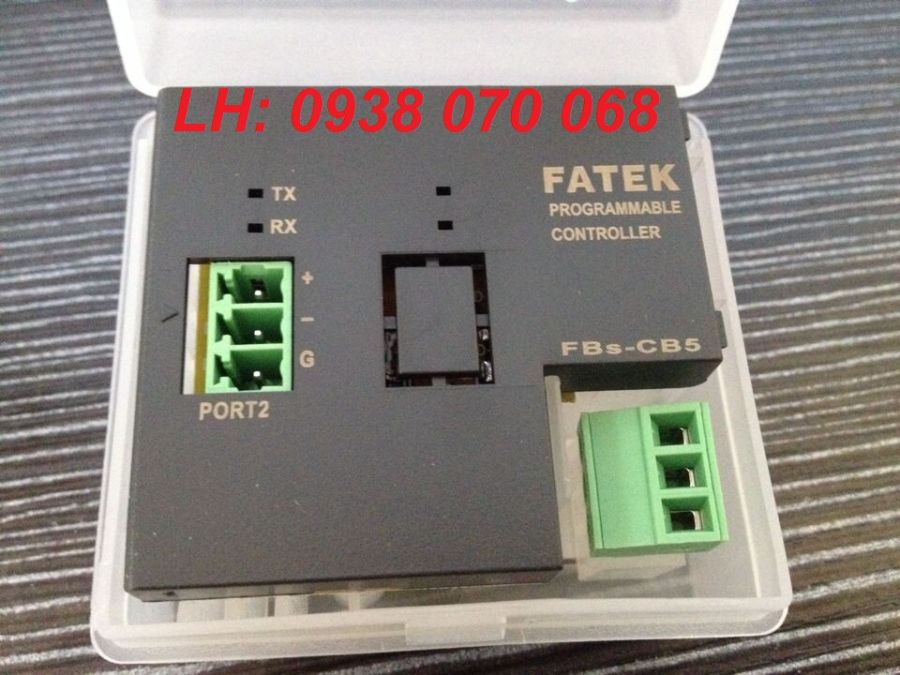

| FBs-CB5 | 1 port RS485 (Port 2) communication board |
| FBs-CB55 | 2 ports RS485 (Port 1+ Port 2) communication board |
| FBs-CB25 | 1 port RS232 (Port 1) + 1 port RS485 (Port 2) communication board |

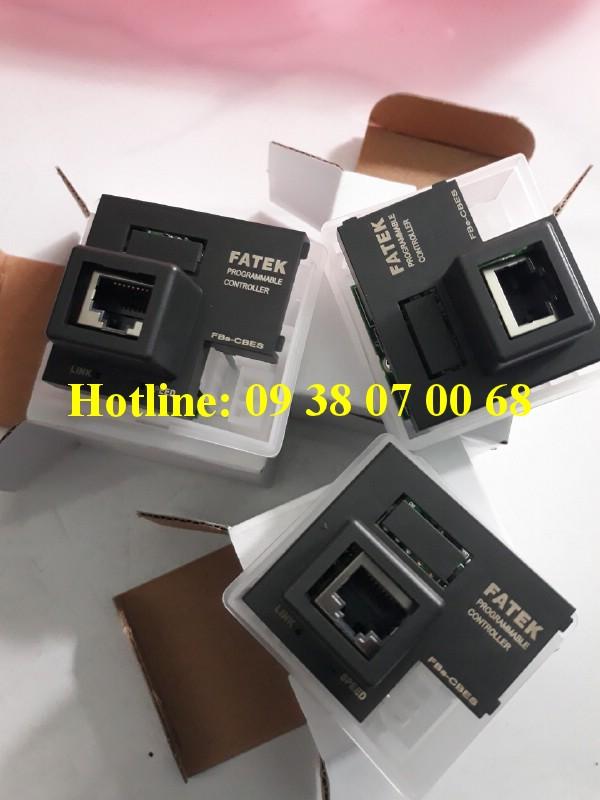

| FBs-CBES | 1 port 10/100 Base T Ethernet communication board |
| FBs-CBEH | 1 port 100 Base T Ethernet communication board |
| FBs-CBEH2A | Multi-function Ethernet communication board with 2 channels Analog input |
| FBs-CBCAN | 1 port CANopen communication board |
| FBs-CBCANH | 1 port CANopen master gatewayd |
| FBs-BSSI | 2 channels, Synchronous Serial Interface Board |
| AIO Boards | |
| FBs-B2DA | 2 channels, 12-bit analog output board (0~10V or 0~20mA) |
| FBs-B2A1D | 2 channels, 12-bit analog input + 1 channel, 12-bit analog output combo analog board (0~10V or 0~20mA) |
| FBs-B4AD | 4 channels, 12-bit analog input board (0~10V or 0~20mA) |
| Precision Load Cell Module | |
| FBs-1HLC | 1 channel, high precision weighing control module with 24-bit resolution |
| FBs-1HLC5 | 1 channel, high precision weighing control module with 24-bit resolution |
| Simple HMI | |
| FBs-BPEP | Board type Parameter Entry Panel |
| FBs-PEP/PEPR | Multi characters with graphics-based Parameter Entry Panel, built-in RFID Read/Write module with PEPR |
| FBs-DAP-B | 16 X 2 LCD character display, 20 keys keyboard, 24VDC power supply, RS485 communication interface |
| FBs-DAP-C | 16 X 2 LCD character display, 20 keys keyboard, 5VDC power supply, RS232 communication interface |
| Programming Devices | |
| FP-08 | FBs- Series PLC handheld programmer |
| Winproladder | FATEK-PLC Winproladder Programming software |
| 1. ◇：R ─ Relay output；T ─ Transistor SINK(NPN) output J ─ Transistor SOURCE (PNP) output | |
| 2. Δ：2 ─ built-in RS232 port；U ─ built-in USB port (non-standard) | |
| 3. ◎：AC ─ 100~240VAC power supply D12 ─ 12VDC power supply D24 ─ 24VDC power supply | |
| 4. The unmarked frequencies of Digital Input (DI) or Digital Output (DO) are low speed | |
